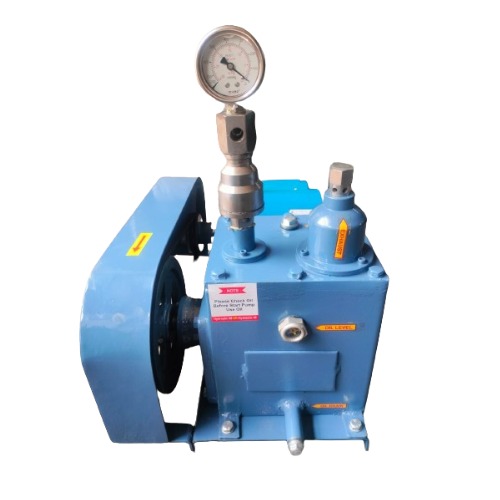

SV 100 LPM single OIL SEAL VACUUM PUMP
- 15,500
High performance SV 100 LPM single oil seal vacuum pump for optimal industrial performance.
Description
SINGLE STAGE
DOUBLE STAGE
Description
Vacuum Pump is primarily used for AIR SUCTION to provide lower pressure for improving process parameters. We manufacture and supply vacuum pump from 0.25 HP to 50 HP range, and from small laboratory diaphargm pump of 15 LPM to large vacuum system with flow capacity of 150000 LPM.
SINGLE STAGE
| Power | 0.25 HP |
| Flow Rate | 6 m3 |
| Type | Belt Drive Rotary Vane Pumps |
| Ultimate Pressure | 0.005mm |
| Free air Displacement | 100lpm |
| Usage/Application | Industrial |
| Phase | Double stage |
| Material | Cast Iron |
| Mounting | Portable |
| Motor Speed | 1440 |
| Warranty | Required |
| Capacity | 100 LPM |
| Voltage | 220 |
| Motor Power | 0.25HP |
| Speed | 1440 |
| Oil Tank Capacity | 2 LITER |
| Automation Grade | Manual |
| Motor Phase | SINGLE PHASE |
| Max Vacuum | 760mm/hg |
| Color | BLUE |
| Vacuum | 760 |
| Pump Model | SV-100 LPM Single Stage |
| C.F.M | 3.5 |
| I Deal In | New Only |
| Country of Origin | Made in India |
DOUBLE STAGE
| Power | 0.5 HP |
| Flow Rate | 6 m3 |
| Type | Belt Drive Rotary Vane Pumps |
| Ultimate Pressure | 0.005mm |
| Free air Displacement | 100lpm |
| Usage/Application | Industrial |
| Phase | Double stage |
| Material | Cast Iron |
| Mounting | Portable |
| Motor Speed | 1440 |
| Warranty | Required |
| Capacity | 100 LPM |
| Voltage | 220/240 |
| Motor Power | 0.5HP |
| Speed | 1440 |
| Oil Tank Capacity | 3 LITER |
| Automation Grade | Manual |
| Motor Phase | SINGLE PHASE |
| Max Vacuum | 760 mm/hg |
| Color | BLUE |
| Vacuum | 760 |
| Pump Model | SV-100 LPM Double Stage |
| C.F.M | 3.5 |
| I Deal In | New Only |
| Country of Origin | Made in India |
